Winchester Model 94 Carbine .30-30, 20-inch, 1971 New Haven Manufacture, Top-Eject with Williams Receiver Sight

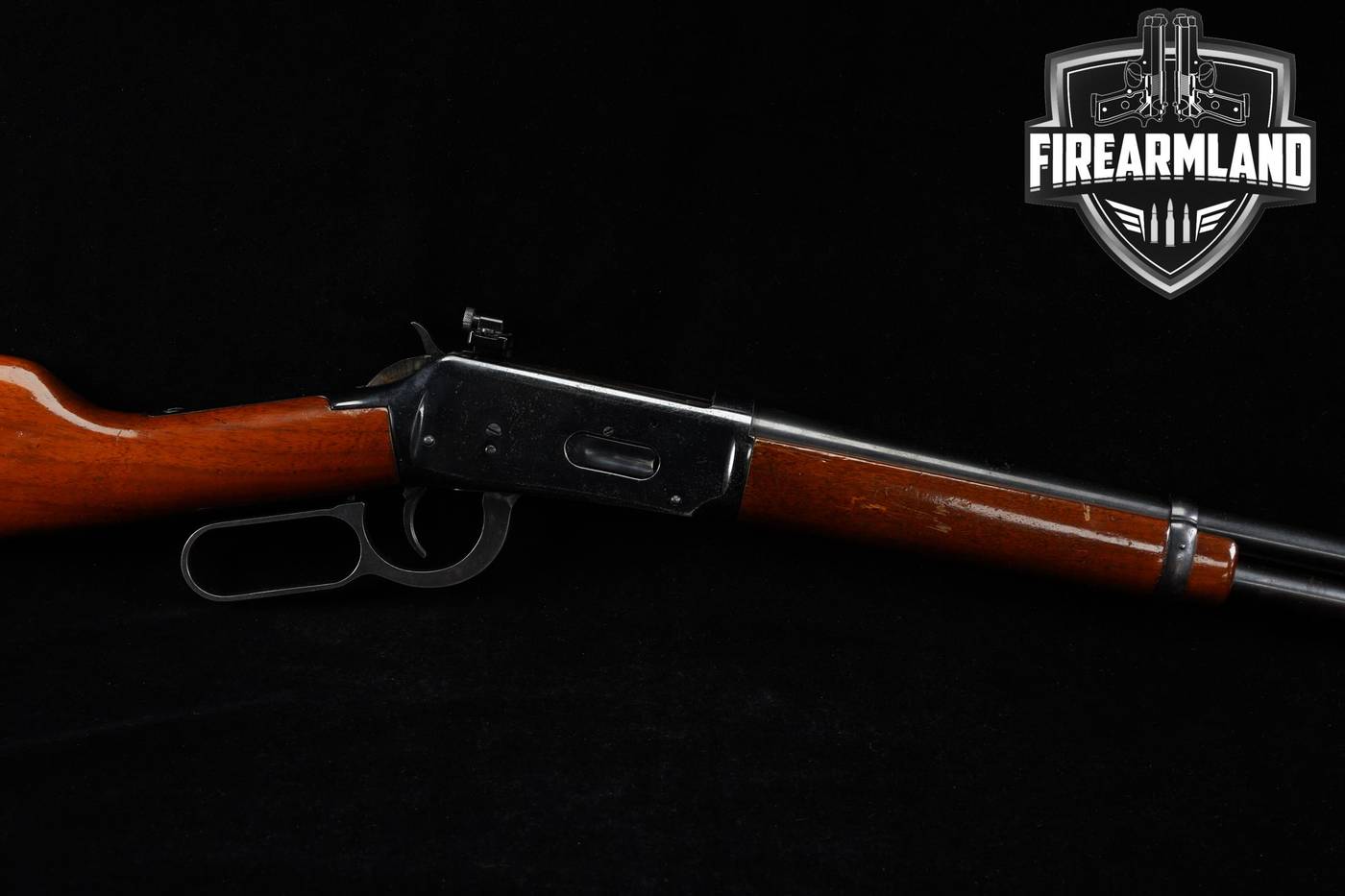

This Winchester Model 94 Carbine in .30-30 Winchester was mfg 1971 in New Haven, Connecticut, and features the classic top-eject, open-top receiver and a 20-inch round barrel. It is set up with a Williams micrometer receiver aperture sight on the receiver-left side; the rear barrel sight has been removed and the dovetail filled. The carbine configuration includes a full-length tubular magazine with a stated 6-round capacity and a straight-grip, two-piece wood stock with glossy finish and a checkered steel carbine buttplate.
Condition
Overall Condition: Good condition, showing some signs of prior use and handling.
Bore Overall Condition: Good - Clean, well-maintained, minor wear marks.
Bore Rifling: Good Rifling - Intact, well-defined lands and grooves.
Specific Condition Notes: There is some pitting and wear present. It seems to function well.
What’s Included
- Winchester Model 94 Carbine .30-30 rifle (manufactured 1971)
- Williams micrometer receiver aperture sight (installed)
- Rear barrel sight dovetail filler/blank (installed)
Manufactured in 1971 in New Haven, Connecticut, this Model 94 Carbine carries correct barrel markings: "WINCHESTER MODEL 94 30-30 WIN." and "MADE IN NEW HAVEN, CONN. U.S.A. WINCHESTER PROOF STEEL." The barrel also bears the Winchester proof mark. This aligns with the top-eject, open-top receiver design and right-side loading gate typical of the era.
The carbine configuration includes a 20-inch round steel barrel, a full-length tubular magazine, and two barrel bands. Capacity is listed at six rounds of .30-30 Winchester. A standard carbine-size lever loop completes the classic handling profile.
The sighting setup is configured for a receiver-mounted aperture: the receiver-left side is drilled and tapped for the Williams micrometer receiver sight that is installed. The original rear barrel sight has been removed and the dovetail is filled with a proper blank. Up front is a ramped post without a hood.
Stock furniture is the straight-grip, two-piece wood set with a glossy finish, paired with a checkered steel carbine buttplate marked "Winchester Repeating Arms." The rifle retains a traditional blued finish over steel components. Length of pull measures 13.5 inches.
