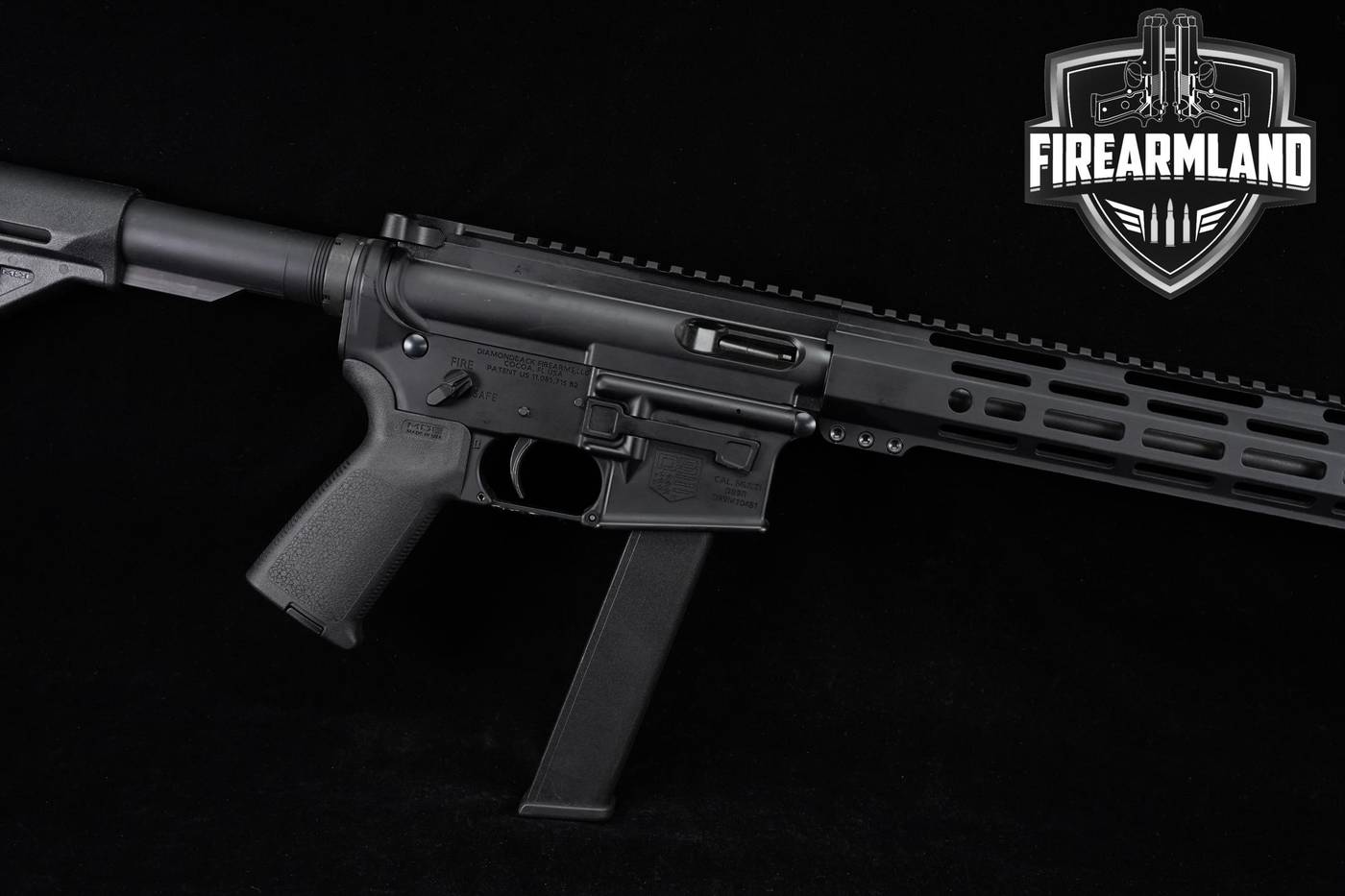

Diamondback DB9R Carbon Series 9mm AR-Style Carbine – 16" Threaded Barrel, Glock-Mag Compatible
The Diamondback DB9R Carbon Series brings pistol-caliber efficiency to an AR-15 platform without compromises. A patented dedicated 9 mm lower, straight-blowback action, and Glock-pattern magazine interface give this carbine modern PCC versatility, while its 16-inch black-nitride barrel and free-float M-LOK handguard keep weight down and accuracy up. Built entirely in the USA from 7075-T6 and 6061-T6 alloys, this is a ready-to-run 9 mm carbine that stands out for its quality materials and thoughtful engineering.
Condition
Overall Condition: Very good condition, showing only light, superficial signs of prior handling or use.
Bore Overall Condition: Excellent - Clean, mirror finish, no signs of wear.
Bore Rifling: Excellent Rifling - Sharp lands and grooves.
Light wear marks and minor surface scratches are present on the exterior.
What’s Included
- 1 × 32-round Glock-pattern 9 mm magazine
The DB9R is built on Diamondback’s patented dedicated 9 mm lower receiver (US 11,085,715 B2). By eliminating mag-well adapters, the gun maintains proper feed-angle geometry and reliable lock-back with common double-stack Glock magazines.
Its 16-inch, 4150 CrMoV steel barrel is medium profile, black-nitride treated inside and out, and factory-threaded 5/8x24 — an uncommon thread pitch for 9 mm PCCs that pairs easily with popular .30-caliber muzzle devices and suppressors.
A full-length Type III hard-coat anodized 7075-T6 upper and lower keep weight to roughly 6.7 pounds, while the 15-inch 6061-T6 free-float M-LOK handguard offers generous accessory space and a continuous Picatinny top rail for optics.
The straight-blowback action is simple, robust, and tuned for 9 mm pressures. Combined with a 1:10 RH twist, it delivers consistent performance with both supersonic and subsonic loads.
An adjustable six-position stock, Magpul MOE pistol grip, and standard AR-15 controls—including a manual selector safety—provide familiar ergonomics and rapid, intuitive handling.
