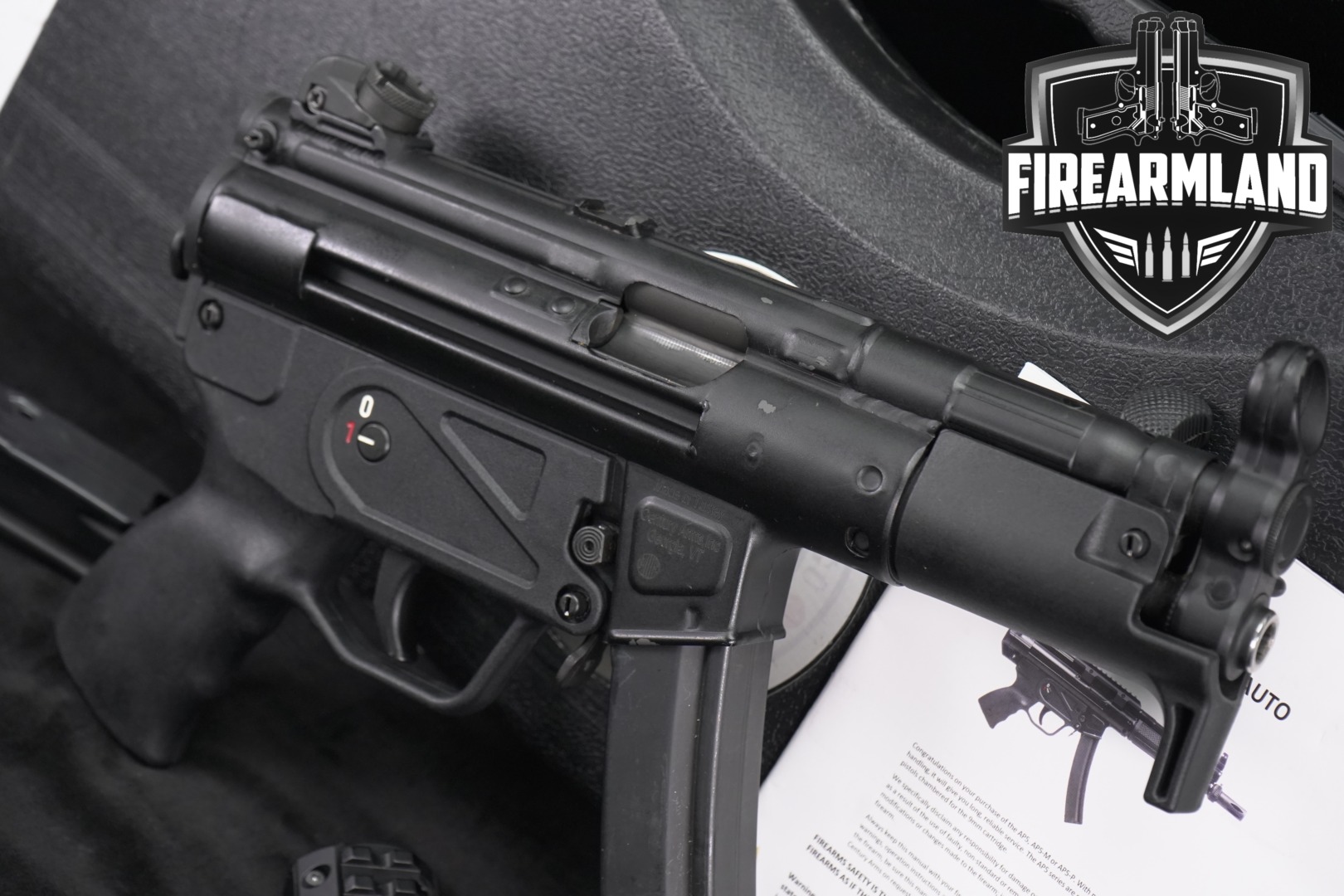

MKE AP5-M 9mm Pistol - Roller-Delayed, 4.6 in Cold Hammer-Forged Barrel, HK-Pattern, Black
The MKE AP5-M is a compact, HK-pattern 9mm pistol built in Turkey with a stamped and welded steel receiver and a roller-delayed, closed-bolt action. It features a 4.6 inch cold hammer-forged CMV barrel with a 12-flute chamber, dual magazine releases, and a left-side non-reciprocating charging handle with a locking notch. This example includes two 30-round magazines, a clamp-on Picatinny optics rail (missing one screw), and the factory hard case with matching serial sticker, along with Century Arms import markings.
Condition
Overall Condition: Good condition, showing some signs of prior use and handling.
Bore Condition: Excellent - Clean, mirror finish, no signs of wear.
Bore Rifling: Excellent Rifling - Sharp lands and grooves.
Specific Condition Notes: Minor, superficial scratches and blemishes are present. The receiver shows spots where the finish is flaking.
What’s Included
- 2x 30rd curved steel HK-pattern magazines
- HK-pattern clamp-on Picatinny optics rail (missing one screw)
- Owner's manual
- Factory hard case with matching serial sticker
The AP5-M uses a stamped and welded steel receiver with top claw-mount engagement pads, paired with a molded polymer K-pattern pistol end cap with a metal sling loop in a pistol configuration. The short K-pattern polymer handguard includes an integral hand stop, and the polymer grip module keeps the package compact and controllable.
Its 4.6 inch cold hammer-forged CMV barrel is complemented by a fluted chamber with 12 flutes and a 1:9.8 twist. The muzzle is short and nearly flush with no tri-lug, keeping the profile minimal.
Controls follow the HK pattern with dual magazine releases (paddle and right-side button) and a left-side, non-reciprocating charging handle with a locking notch. A manual safety is provided.
Sighting is via a protected hooded front post and a rear HK diopter drum that is adjustable for windage and elevation. The receiver top is marked "MKE AP5-M," and import markings note Made in Turkey with Century Arms Inc., Georgia, VT, and the MKE logo.
Key measurements include an overall length of 12.7 inches and an unloaded weight of approximately 4.5 lb. The stated capacity is 30+1.
