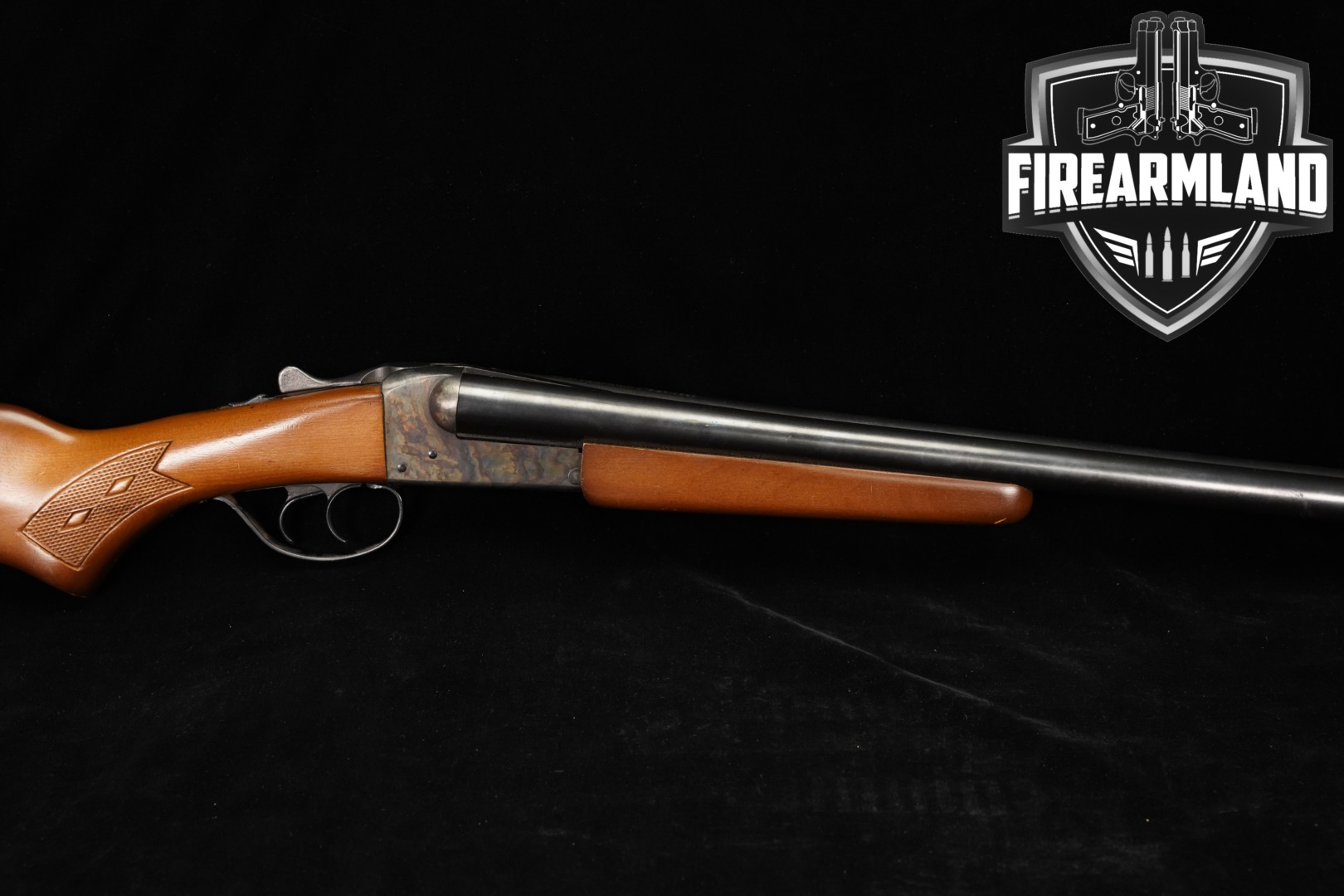

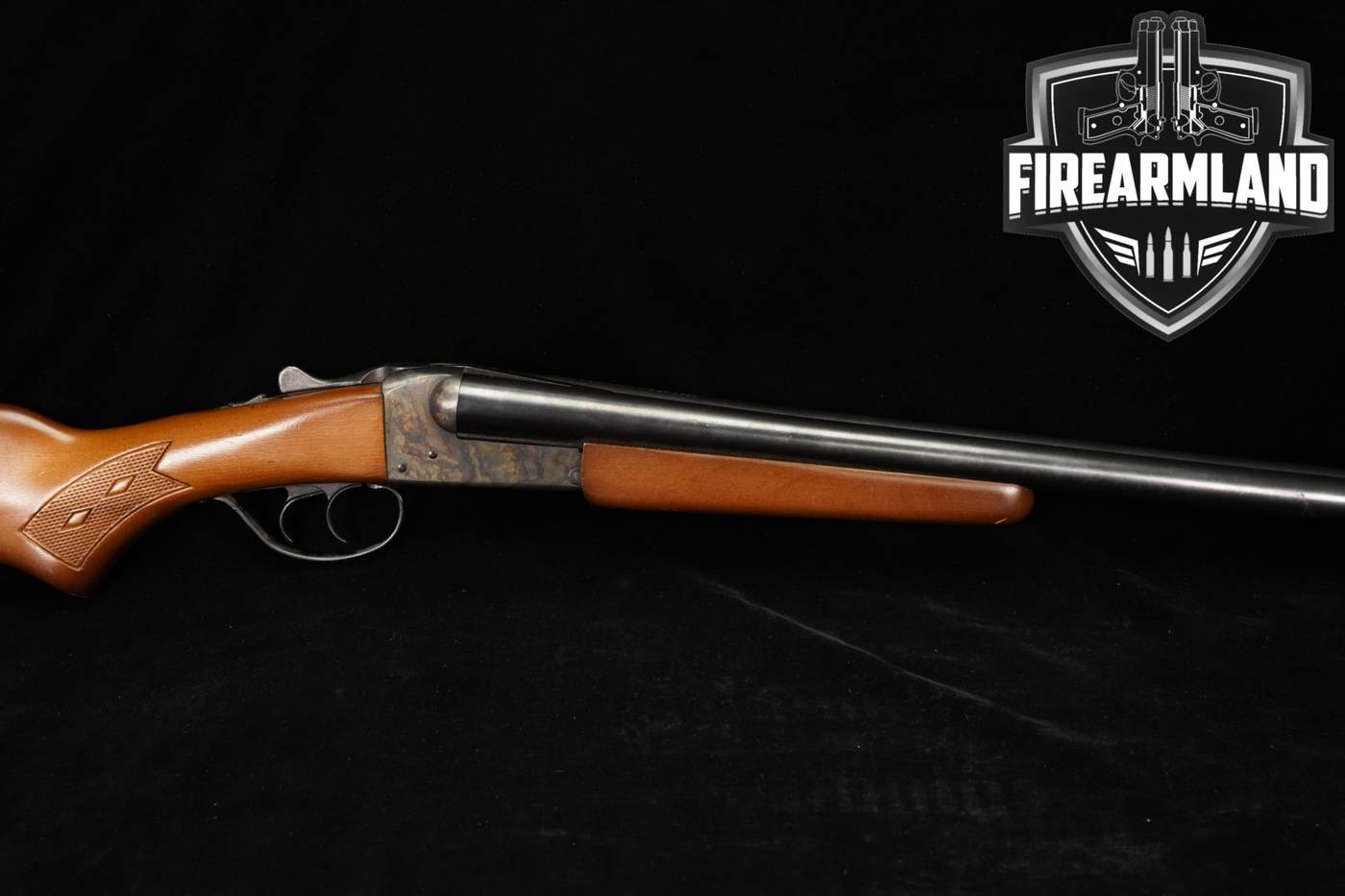

Savage Arms Model 511 Series A 12 Gauge Side-by-Side Shotgun, 28 Inch Barrels, Color Casehardened Receiver
This U.S.-made Savage Arms Model 511 Series A is a boxlock 12 gauge side-by-side with 28 inch blued steel barrels, a color casehardened steel receiver, and extractor-only ejection. It features double triggers, a tang safety, and a solid top rib with a single front bead. A ventilated orange recoil pad has been installed, yielding a 15.0 inch length of pull. Barrel flats are marked "12 R Y" and "S41."
Condition
Overall Condition: Poor condition.
Bore Condition: Good - Clean, well-maintained, minor wear marks.
Specific Condition Notes: This firearm is currently inoperable. The rib extension/top bite (often called the doll's head) that contains the locking lug has sheared off, preventing the firearm from locking up properly. The triggers are not functioning. Gunsmith special sold as is.
What’s Included
- Savage Arms Model 511 Series A 12 gauge side-by-side shotgun
The Model 511 Series A is a classic American boxlock built under the Savage/Stevens umbrella, recognized as the Springfield-branded counterpart to the Stevens Model 311 family. This example is chambered in 12 gauge with a two-shot capacity and extractor-only ejection, operated by a top-lever break-action.
Its steel receiver wears a color casehardened finish paired with blued steel barrels. The 28 inch barrels have a solid top rib and a single front bead sight. The bore condition is noted as good.
The hardwood stock set includes a pistol grip and a beavertail snap-on forend with pressed checkering at the wrist. A ventilated orange recoil pad has been installed, providing a 15.0 inch length of pull. Safety is handled by a tang-mounted safety, and the gun is configured with traditional double triggers.
Markings include "12 R Y" and "S41" on the barrel flats. Overall configuration and features align with the 511 Series A pattern: side-by-side blued barrels, color casehardened receiver, top-lever action, double triggers, and extractor-only ejection.
