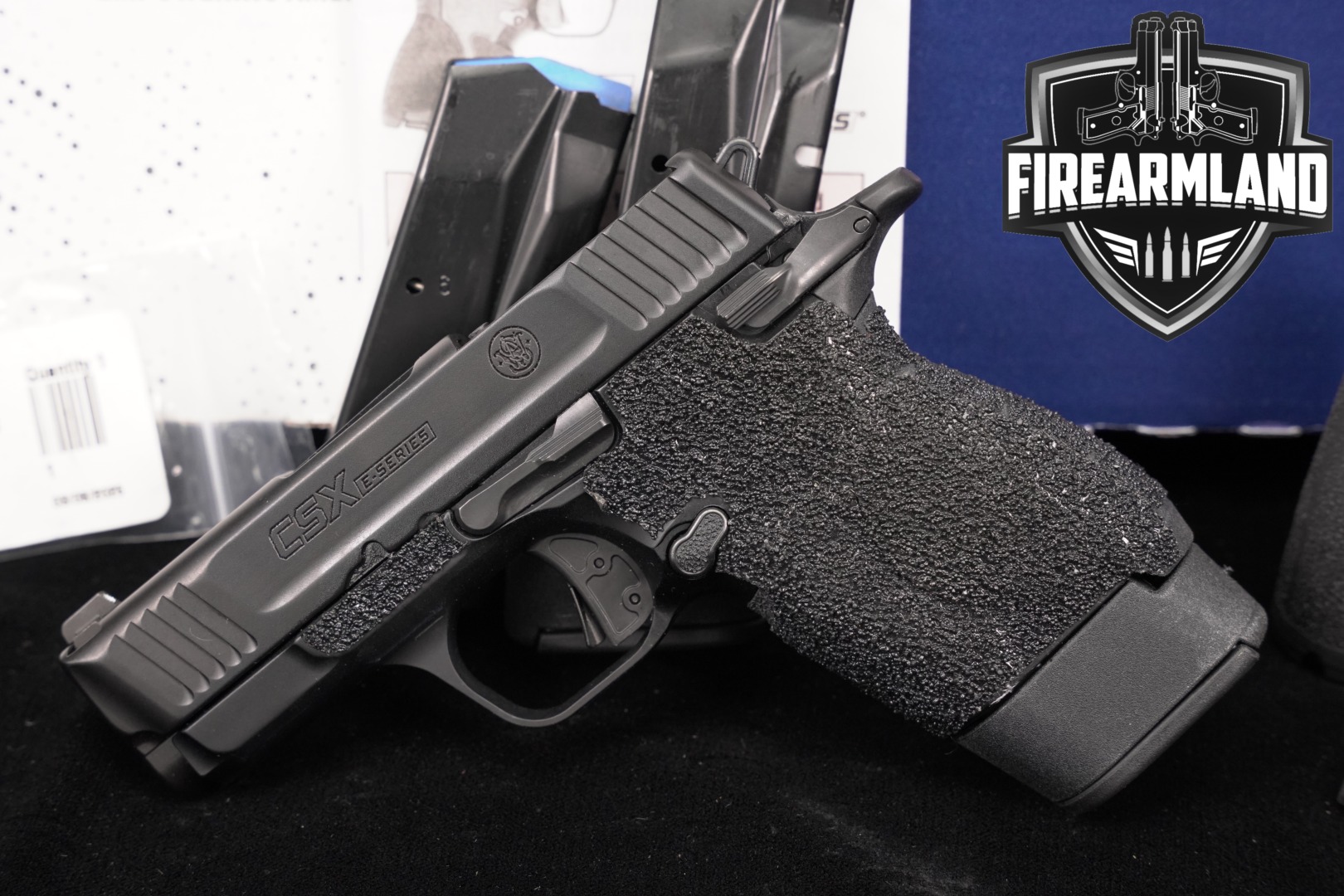

Smith & Wesson CSX E-Series Optics-Ready 9mm Micro Pistol, SAO, 3.1 in Barrel, Aluminum Frame, Black Armornite
This Smith & Wesson CSX E-Series is a micro-size, single-action, hammer-fired 9mm with an optics-ready slide cut for RMS-C and Holosun 407/507K footprints. It pairs a 3.1 in stainless steel barrel and Armornite-treated stainless slide with an anodized aluminum-alloy frame. The pistol includes three magazines (two 15-round and one 12-round), ambidextrous controls, fixed steel white-dot sights, and a wrap-style textured grip overlay installed on the frame. Box and manual are included, and the box label matches the pistol’s serial on the frame.
Condition
Overall Condition: Good condition, showing some signs of prior use and handling.
Bore Condition: Excellent - Clean, mirror finish, no signs of wear.
Bore Rifling: Excellent Rifling - Sharp lands and grooves.
Specific Condition Notes: Shows minimal handling marks. Please refer to the photos for detailed views.
What's Included
- Smith & Wesson factory box with end label
- Smith & Wesson CSX E-Series Safety & Instruction Manual
- 2x 15-round steel magazines with extended baseplates
- 1x 12-round steel magazine with flush baseplate
- CSX E-Series interchangeable palm-swell backstrap inserts (two additional)
- Factory CSX accessories package (small parts/hardware)
- Installed textured grip wrap overlay on frame (aftermarket)
The CSX E-Series configuration combines a compact 9mm platform with a true single-action, hammer-fired system. It features a single-action trigger with an integral safety tab, revised for a lighter, crisper break with an improved reset, plus an ambidextrous manual thumb safety, a firing pin block, and a trigger safety tab.
The stainless steel slide and 3.1 in stainless barrel wear Smith & Wesson’s black Armornite (nitrided) finish. The slide includes front and rear serrations, scalloped front relief cuts, and an optics-ready cut with a cover plate marked "M4 THREADS." The cut accepts RMS-C pattern optics and Holosun 407/507K footprint options when the plate is removed.
The anodized aluminum-alloy frame keeps weight down and adds durability. Controls include ambidextrous slide stop/release levers, and a lanyard loop at the rear of the frame. Fixed dovetailed steel sights use a white-dot front and a square-notch rear for a straightforward sight picture.
Dimensions are approximately 6.1 in overall length, 4.6 in height, and 1.1 in width, with an unloaded weight of about 19.7 oz. Capacity is stated at 15+1. The slide is explicitly marked "CAUTION - CAPABLE OF FIRING WITH MAGAZINE REMOVED," indicating no magazine disconnect. This example includes two additional palm-swell backstrap inserts, three magazines, and a factory box whose end label matches the pistol’s serial on the frame. Mfg part number is 13897.
